PLAVI ES9542R

PLAVI ES9542R digital colour label printer with CMYK and white toner printing
PLAVI ES9542R digital label printer with a range of printed labels and packaging samples

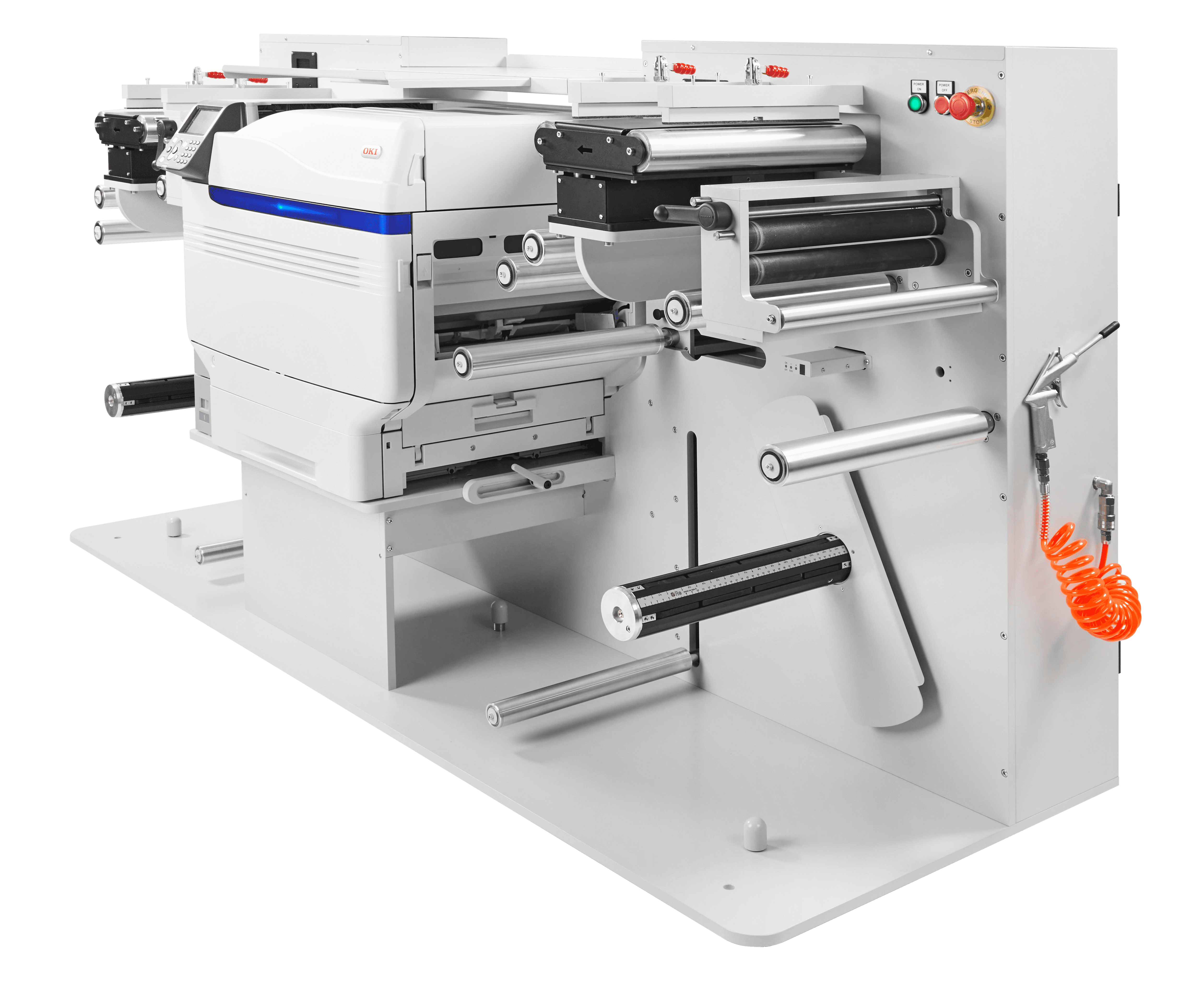

Opposite-side view of the PLAVI ES9542R digital label printer showing its internal rollers and label feed assembly
Side view of the PLAVI ES9542R digital label printer showing its label handling and printing mechanism

The PLAVI ES9542R brings a new dimension to colour label printing with its built-in CMYK+WHITE capability, powered by digital LED and dry toner technology. Whether for high-volume runs or short, on-demand jobs, this printer produces high-durability labels that are waterproof, alcohol-resistant, and grease-proof, ensuring reliability and product integrity in any environment.

The PLAVI ES9542R brings a new dimension to colour label printing with its built-in CMYK+WHITE capability, powered by digital LED and dry toner technology. Whether for high-volume runs or short, on-demand jobs, this printer produces high-durability labels that are waterproof, alcohol-resistant, and grease-proof, ensuring reliability and product integrity in any environment.

Download Brochure (AR)

Printing Technology

LED electrophotography

Printing Resolution

600 × 600 dpi

Warm-up Time

50 seconds or less from power on

First Print Out Time *1

8 seconds colour, 8 seconds mono

Print Speed

A4: 50ppm colour, 50ppm mono
A3: 28ppm colour, 28ppm mono
White: up to 45ppm (simplex)

Interface

Hi-Speed USB 2.0, 10Base-T/100Base-TX/1000Base-T

Protocol

TCP/IP, EtherTalk

Printer Language

Printer Language

Supported OS (Click here for latest OS)

Windows Vista (32-bit & 64-bit) / XP (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Windows 7 (32-bit & 64-bit) / Server 2012 (64-bit) / Windows 8 (32-bit & 64-bit) / Windows 10 (32-bit & 64-bit); Mac OS9 / OS X 10.3.9 - 10.9

Memory (Std./Max.)

Standard RAM: 2GB; Maximum RAM: 2GB

Hard Disk Drive

Optional Hard Disk Drive: 160GB

Font

87 scalable PCL fonts, Lineprinter/OCR-A/OCR-B/USPSZIP bitmap fonts, 10 TrueType fonts, 136 Adobe PostScript Type 1 fonts

Paper Size

Tray 1/2/3: A3, SRA3 (up to 330 x 457mm), SRA4, A4, A5, A6, B4, B5, B6; Multi-purpose tray: A3, SRA3, SRA4, A4, A5, A6, B4, B5, B6 Custom size: Width 64 - 330mm Length 89 - 1,321mm; High Capacity Feeder: A3, SRA3 (up to 328 x 457mm), SRA4, A4, A5, A6, B4, B5, B6

Paper Weight

Tray 1/2/3: 52 to 320gsm; Multi-purpose tray: 52 to 360gsm; Duplex: 64 to 320gsm; High Capacity Feeder: 52 to 320gsm

Input Capacity

Tray 1: 530 sheets of 80gsm; Multi-purpose tray: 300 sheets of 80gsm

Output Capacity

610 sheets face down tray, 300 sheets face up tray

Dimensions (WxDxH)

2080 × 1240 × 740 mm (L × H × W)

Weight (includes supplies)

495 kg, including printer and winder

Operating Environment

Operating temperature/humidity: 10属C to 35属C (17属C to 27属C recommended) / 10% to 85% RH (50% to 70% RH recommended)
Storage temperature/humidity: -10属C to 43属C, 10% to 90%RH

Power Source

Single phase 220 to 240VAC, frequency 50Hz +/- 2Hz

Power Consumption

Typical: 1100W; Max: 1600W; Idle: 40W (average); Power Save: <0.5W

Safety & Environment Regulation

Energy Star, EMC-Directive, CE Mark, GS Mark

Noise Level

Operating: 57dB(A); Standby: 32dB(A) or less; Power save: Inaudible

Duty Cycle

Average: 25,000 pages/month
Maximum: 300,000 pages/month

In the Box

Manuals, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM, Louver
